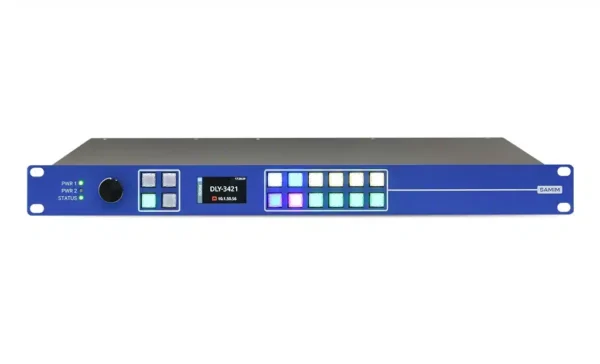

DLY-3421

1RU 3G / HD / SD-SDI and AES Delay Line

The DLY-3421 functions as a standalone device, offering a single-channel SDI and multi channel digital audio delay line. It has the capability to independently introduce desired delays to active video, embedded audio, and 4-channel AES inputs.

Overview

The DLY-3421 functions as a standalone device, offering a single-channel SDI and multi-channel digital audio delay line. It has the capability to independently introduce desired delays to active video, embedded audio, and 4-channel AES inputs. This product, the DLY-3421, serves a crucial role in adjusting delays within the signal chain and in controlling content to prevent the use of profanity. It handles frame synchronization in relation to a reference input or a free-run clock, and it provides 3 identical SDI outputs. Moreover, it includes bypass relay protection for both SDI and AES outputs, enhancing reliability within the chain. For configuration and monitoring purposes, users have the option to utilize both the front panel controls and the web-based interface.

Features

• 1RU rackmount case with integrated front control panel
• Supports 3G/HD/SD-SDI & AES (48kHz) inputs
• Independent delay control for active video, embedded audio, and AES inputs
• Wide video delay range: 2 to 4250 frames in SD, 2 to 1120 frames in HD/3G
• Wide audio delay range: 1 to 170,000 milliseconds
• Input loss compensation
• SDI frame synchronization
• Relay protection for SDI and AES outputs
• No quality impacts due to raw data operation (No encode and decode)
• Web-based user interface
• Remote firmware upgrade
• Redundant power supplies

Order Info
Order Code Description Type
DLY-3421-C11RU 3G/HD/SD-SDI and AES Delay Line with Front Control Panel and Redundant Power SuppliesBase
MOD-TSP-DAI4O4R4-CH Digital Stereo Audio Input + 4-CH Digital Stereo Audio Output Module with RelayOptional I/O Module

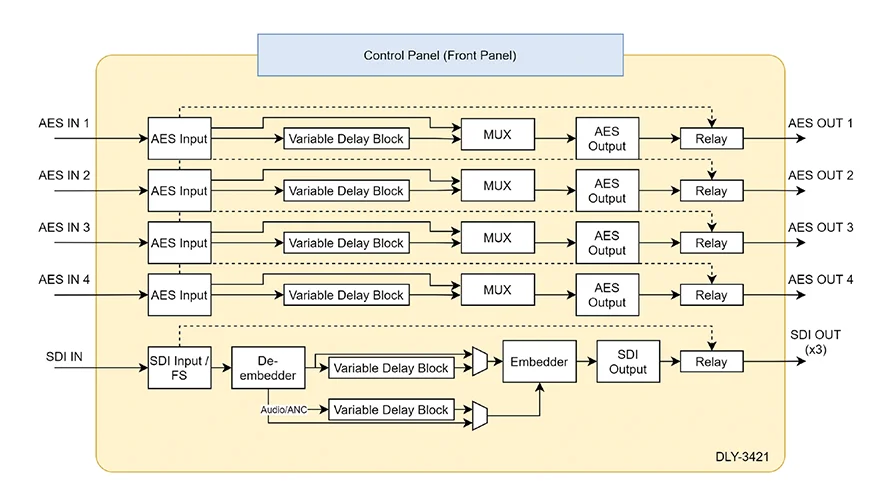

Block Diagram
DLY-3421-Block-Diagram
Specifications
Applications
Delays on live PCR output streams
Delays on live PCR input streams
Timing Adjustments among asynchronous audio / video resources
Lip Syncs / Frame Synchronizations
