Professional Solution for Routing and Monitoring
AV Production Signals in Real-time

SDE-4800 is a modular unified routing /multiviewer platform that supports up to 6 input modules receiving 48 signal lines and up to 6 variable output modules. The output modules are in 3 different types including router modules, clean switch modules, and picture-in-picture multiviewer modules:

The SDI-OUT output module provides 8 re-clocked outputs fed from the internal crosspoint. Users can select the source of each output from any input via SAMIM control panels, creating an SDI / ASI router from 8x8 up to 48x48.

The CLN-OUT output module generates four clean & quiet switched outputs from any selected input, fulfilling the need for clean outputs even with asynchronous inputs.

The MIP OUT output module is a compelling solution for monitoring 8 input lines of AV signals in a user-defined layout, including audio level meters, UMD, tally, and error indicators. Multiviewer modules can also be cascaded internally to build a layout containing up to 48 inputs.

sde-4800

Core Benefits

Modular Design

Modular Design

All SDE-4800 components are completely modular. This ensures more reliability and better functionality of the device in a 24/7 non-stop workload.

Scalability

Flexibility and Scalability

SDE-4800 is a flexible equipment which easily adapts to different needs and requirements of TV stations and production studios in various sizes.

Reliability and Strength

Reliability and Strength

Due to hot-plug nature of SAMIM modules and mod-ularity of the frames, you would enjoy a reliable and powerful solution in your broadcast infrastructure

Easy Control and Monitoring

Easy Control and Monitoring

All SDE-4800 components, including the frame, the cards, I/O lines, power resources, ... can be easily monitored and controlled via a web-based and a friendly user interface.

Easy Control

Customized Multiviewer Layouts

SDE-4800 multiviewer component harnesses a user-friendly and intuitive application for designing and tuning PIP layouts which is accessible through Windows-based systems.

Technical Support

Technical Support + Remote services

SDE-4800 includes professional services via telephone, email, web, local assistance. Technical support, remote upgrades, on-premises trainings, ... would also be offerable.

Features

SDE-4800 is a modular unified routing and multiviewer platform that supports up to 48 3G / HD / SD-SDI inputs along with many outstanding capabilities for professional broadcasters

SDE-4800

SDE-4800

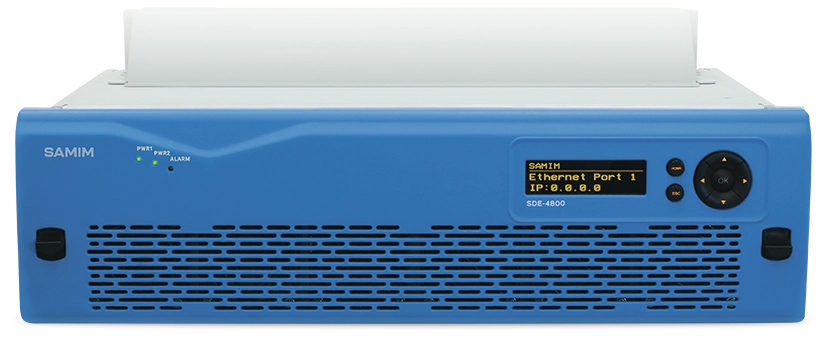

  • 3RU frame with 1RU optional external fan with automatic fan speed control
  • Modular design
  • Dual and redundant power supplies
Router

Router

  • Support 3G/HD/SD-SDI and DVB-ASI signals
  • Compatible with SAMIM router control panels
  • Re-clocked outputs
  • Switch point related to the reference input
  • Clean & quiet switch module
Multiviewer

Multiviewer

  • Layout design by the Windows-based software
  • HDMI and SDI output per head
  • X8 PIPs per head, internally cascadable
  • X40 tally input, x8 programmable GPO
  • NTP or LTC as clock source
  • Video fault detection & logging (black, freeze, CRC, unlock, EDH)
  • Embedded audio fault detection & logging (absence, silence, overload)

Key Advantage

3 in 1 solution

with highly-reliable functionalities

Router

Router

Clean-Switcher

Clean Switcher

Multiviwer

Multiviewer

SDE-4800 is a modular unified routing and multi-viewer platform that supports up to 48 3G / HD / SD-SDI inputs along with many outstanding capabilities for professional broadcasters

Back
Front
Included Modules
01-3 1

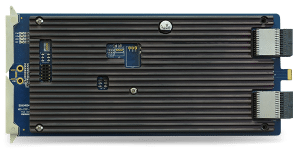

MIP-OUT Card Modules

Providing a multiviewer head with eight Picture-in-Picture tiles

01-1 3

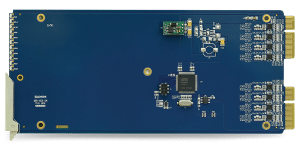

SDI-OUT Card Modules

Providing eight routed outputs of SDI/ASI Signals, per each module

01-2 3

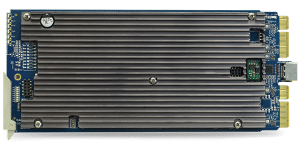

CLN-OUT Card Modules

Providing four clean and quiet switched outputs, per each module

Frequently Asked Questions

Samim SDE-4800 provides up to 48 in 48 SDI I/O ports. for larger broadcasters and production control rooms, we have a new incoming platform called OMIX, which provides many more distribution ports and routing channels.
