Signal Distribution

Distribution and equalization of digital or analog signals without the need for a separate frame.

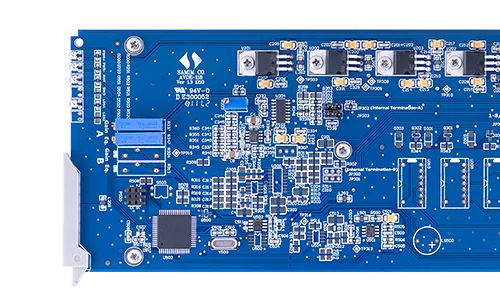

SAMIM AVD-0318 is an analog video distribution amplifier with cable equalization and 8 outputs. This card provides single ended and differential input with passive loop-through.

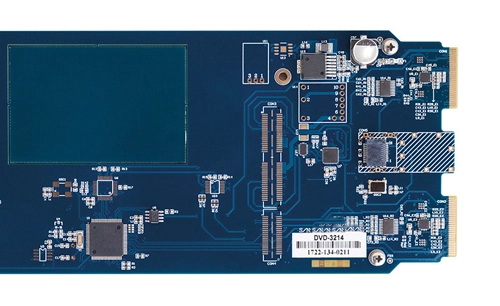

DVD-3214 Broadcast Infrastructure SAMIM GROUP


SAMIM DVD-3214 is a 3G/HD/SD-SDI/ASI video distribution amplifier which can be operated as single or dual channels. It operates in two modes: 1 to 8 and dual 1 to 4. For the 1 to 8 mode, input one is connected to all eight outputs. For the dual 1 to 4 mode, input one is connected to the first four outputs, and input 2 is connected to the second four outputs. In the event of a power failure, the input signal is transferred to the output by a bypass relay. Re-clocker for jitter removal and equalizer for cable loss compensation are the main capabilities of the module
