SKY-3540
3G / HD / SD-SDI Keyer and Logo Inserter
SAMIM SKY-3540 is a configurable four layer keyer compatible with SAMIM SRM frames. The module includes two layers of luminance / self key, a layer of static logo insertion, and a layer of animated logo insertion. The module receives one 3G / HD / SD-SDI input as the background and two pairs of key / fill inputs.
Overview
Logo Inserter Modules are utilized to add logos and other graphics to video feeds. Samim SKY-3540 is a state-of-the-art HD SDI keyer and logo inserter designed to elevate your broadcast graphics to a higher level.
This innovative module features a configurable four-layer keyer that seamlessly integrates two layers of luminance/self-keying, a static logo layer, and an animated logo layer, allowing for perfect flexibility in graphic presentations.
With the ability to accept a single 3G/HD/SD-SDI input as the background and two pairs of key and fill inputs, SKY-3540 is engineered for versatility and convenience.
It also includes an impressive 2.5GB of internal storage, enabling users to store high-quality logos with lossless compression for efficient use. The module’s four identical outputs facilitate easy integration into any signal chain. What sets the Samim’s Logo Inserter apart, is its user-friendly web-based interface, which allows for effortless management of logo files and keyer layers. Additionally, the GPI interface provides real-time control over layer activation, enhancing operational efficiency during live broadcasts. Whether you’re producing live sports events, corporate presentations, or television shows, the module is your go-to solution for professional-grade graphics. Experience the future of broadcast graphics with the SKY-3540, where innovation meets reliability.
Specifications
| Digital Video Input | Reference Signal Input | GPI/O | Digital Video Output | Electrical | Environmental |
|---|---|---|---|---|---|
| Signal Type: 3G/HD/SD-SDI Standards: SMPTE 292M, SMPTE 259M, SMPTE 424M Number of Inputs: 5 Impedance: 75Ω Connector: BNC Voltage Level: 800 mV ± 10% | Signal Type: HD (Tri-level), SD (Black Burst) Number of Inputs: 1 Impedance: 75Ω Connector: BNC | Connector: 15 Position D-Sub (3-Row, Receptacle) GPIO Voltage: 12V Number of GPIs: 4 Number of GPOs: 4 | Signal Type: 3G/HD/SD-SDI Number of Outputs: 4 Connector: BNC Impedance: 75Ω | Voltage: +12 VDC (from frame) Power: <18W | Temperature: 5 °C to 40 °C Humidity: 0% to 90% |
Features
• Four layer keyer and logo inserter with transparency support
• Animated logo up to 400 frames
• 2.5GB internal storage, lossless logo file compression for efficient storage
• Luminance or self key with configurable thresholds
• Adjustable line synchronizer with Tri-level / Bi-level reference input
• Bypass relay protection on first output
• Four identical outputs
• User-definable priority for layers
• GPIO control & monitoring
• Embedded audio and ancillary data transparency
• Web interface remote control
• Remote Firmware Upgrade
Benefits
Investing on Samim SKY-3540 offers numerous benefits for broadcasters:
Enhanced Visual Quality: The ability to insert high-quality logos and graphics improves the overall production value.
Increased Efficiency: The intuitive web interface and GPI control streamline operations, allowing for quick adjustments during live broadcasts.
Flexibility: With support for multiple input and output formats, the logo inserter module adapts to various production environments.
Cost-Effectiveness: The internal storage and lossless compression reduce the need for external storage solutions, saving costs.
Future-Proof Technology: Remote firmware upgrades ensure that Samim SKY-3540 remains up-to-date with the latest features and improvements.
Applications

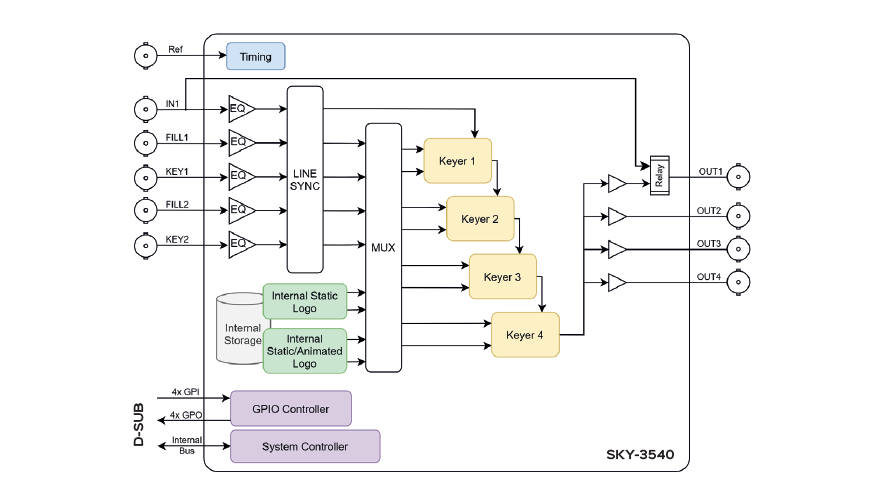

Block Diagram
Order Info
| Order Code | Description | Type |
|---|---|---|

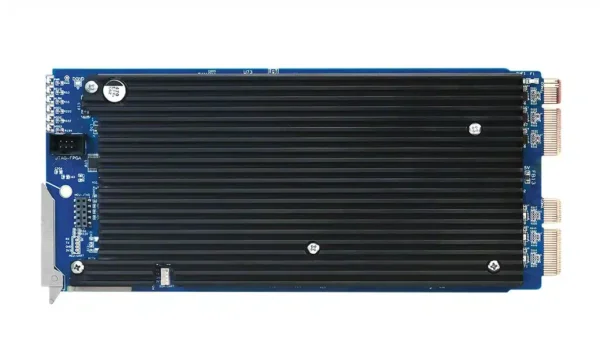

| SKY-3540 | 3G/HD/SD-SDI Keyer and Logo Inserter Main Board | Main Board |

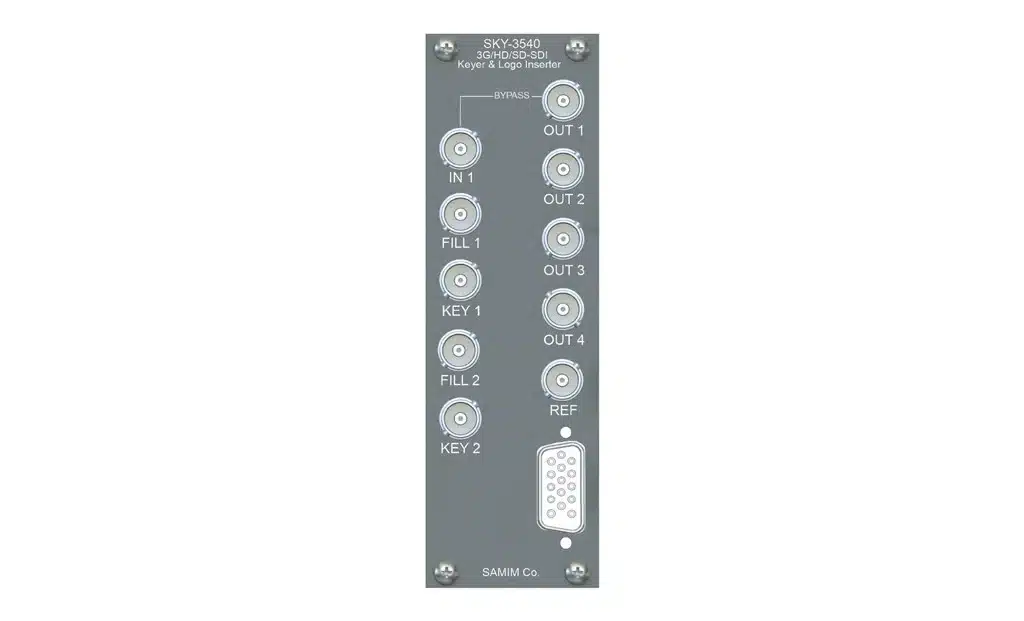

| SKY-3540-3DRP-R | Back-panel for SKY-3540 with relay protection (compatible with SRM-0655) | Back-panel |
Download
| Download Name | Download File |
|---|---|
| SKY-3540-Datasheet | https://www.samimgroup.com/wp-content/uploads/2023/09/Samim-SKY-3540-datasheet-en.pdf |
