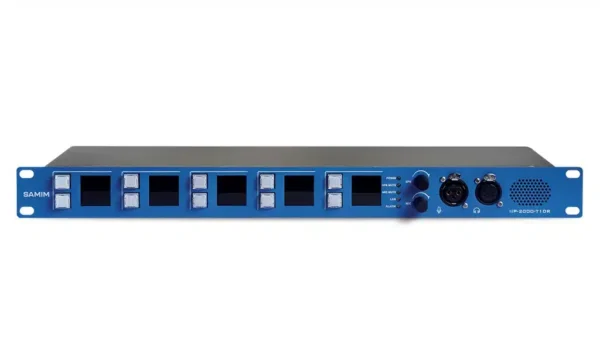

IP Intercom Panel Talkback 10 -Button 1U Rackmount

IIP-2000-T10R is a 10-button intercom panel, in which, each button can be defined for communication with another panel. Communication can occur in both half-duplex and full-duplex modes. The panel features a display to view the panels’ main functions status easily.


IIP-2000-T10R is the 10-button 1RU rackmount talkback device in the IP Intercom product line. It facilitates communication between 10 different users. The architecture allows for flexible interfacing with other users, reducing costs and configuration complexity by eliminating audio interface cables and central matrices. Being matrix-free enables plug-and-play networked hardware and software equipment to be added to the system as part of a planned or ad-hoc change, with no concerns about requiring more available ports on the matrix. As it is not server-based, the IIP-2000 can manage settings, centralized control, and real-time monitoring of the system on a PC, cellphone, tablet, etc., simply by entering an IP address in the browser. This system is fully implemented digitally, resulting in higher audio quality than analog systems, and it also allows users to record conversation details.


• Standard 1RU frame
• 10× illuminated pushbutton switches, Red/Green/Yellow
• System scalability
• Supports ITU-G.711, ITU-G.722 codecs
• Supports EBU-TECH 3347 standard
• Supports 16/48 kbps sample rates
• Firmware upgrade ability
• Easy configuration and monitoring
• High fidelity sound quality
• Cost-effective
• Ability to make group conversation
• High reliability

Order Info
Order Code Description Type
IIP-2000-T10R1RU IP-based Intercom Panel, 10 KeysBase
IIP-2000-MIC1Gooseneck Microphone (JTS GM-5212K)Accessory
Block Diagram
Radio/TV Stations
Production Studios
Monitoring Centers
