FSY-3260
Dual-Channel 3G/HD/SD-SDI Frame Synchronizer
Samim FSY-3260 is a dual-channel frame synchronizer compatible with 3G, HD, and SD-SDI formats. It enables precise delay adjustment for both video and embedded audio, making it an ideal choice for applications such as timing alignment, lip-sync correction, phase tuning, and managing embedded data. To ensure consistent signal performance, the FSY-3260 includes a relay-protected output that enhances reliability across the signal chain.
Overview
Samim FSY-3260 is a dual-channel frame synchronizer supporting 3G, HD, and SD-SDI. It can apply the desired delay to video and embedded audio, making it the perfect solution for timing, lip-sync correction, phase adjustment, and blocking embedded data. 3G SDI Frame Synchronizer features a relay-protected output to maintain reliability in the signal chain.
Video Frame Synchronizer provides multiple identical outputs per path, eliminating the need for additional distribution amplifiers. Monitoring and configuration are easily managed through a user-friendly web interface.
Samim 3G SDI Frame Synchronizer offers two fully independent processing paths with a 2-to-2 input mux, allowing users to apply separate settings even on a single input. It also includes automatic freeze or black output upon signal loss, along with accurate horizontal and vertical timing adjustment using Tri-level or Bi-level reference signals.
Additionally, our video frame synchronizer supports audio sample rate conversion (SRC), remote firmware updates, and full support for ancillary data, making it a versatile solution for today’s dynamic broadcast environments.
Specifications
| Digital Video Input | Digital Video Output | Reference Signal Input | Electrical | Enviromental |
|---|---|---|---|---|
| Signal type: 3G/HD/SD-SDI | Signal type: 3G/HD/SD-SDI | Signal Type: HD: Tri-level, SD: Black Burst (PAL) | Voltage: +12 VDC (from frame) | Temperature: 5 °C to 40 °C |
| Standards: SMPTE 292M, SMPTE 259M, SMPTE 424M | Standards: SMPTE 292M, SMPTE 259M, SMPTE 424M | Number of inputs: 1 | Power: <15W | Humidity: 0% to 90% |
| Number of inputs: 2 | Number of outputs: 6 | Impedance: 75Ω | ||
| Impedance: 75Ω | Connector: BNC | Connector: BNC | ||
| Connector: BNC | Impedance: 75Ω | |||
| Voltage level: 800 mV ± 10% | Jitter: <0.2 UI (HD, SD) <0.3 UI (3G) | |||
| Cable length: Automatic Compensation 3G/HD/SD: 70/110/250 m (Belden 1694A) | Rise and fall time: 0.4 to 1.5 ns (SD) <270 ps (HD) <135 ps (3G) | |||
| Voltage level: 800 mv ± 10% | ||||
| Overshoot: <10% Amplitude | ||||
| DC-Offset: 0 V ± 0.5 V |
Features
• Automatic 3G/HD/SD-SDI detection
• Bypass relay protection on first output
• Independent two processing paths with input 2-to-2 mux (Applying two different settings on a single input is achievable.)
• Three identical outputs per processing path
• Up to 125 frames of delay in HD/3G or 470 frames of delay in SD (metadata delay is identical to video delay)
• Up to 30 seconds of delay on embedded audios
• Auto freeze or black on video loss
• Frame synchronizer and audio SRC with Tri-level / Bi-level reference input
• Horizontal/Vertical timing adjustment with respect to reference input
• Embedded audio and ancillary data support
• Web-based user interface
• Remote firmware upgrade

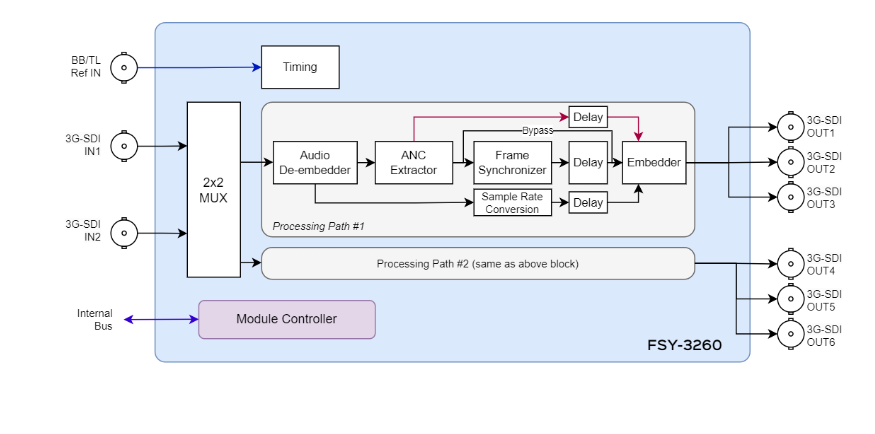

Block Diagram
Order Info
| Order Code | Description | Type |
|---|---|---|

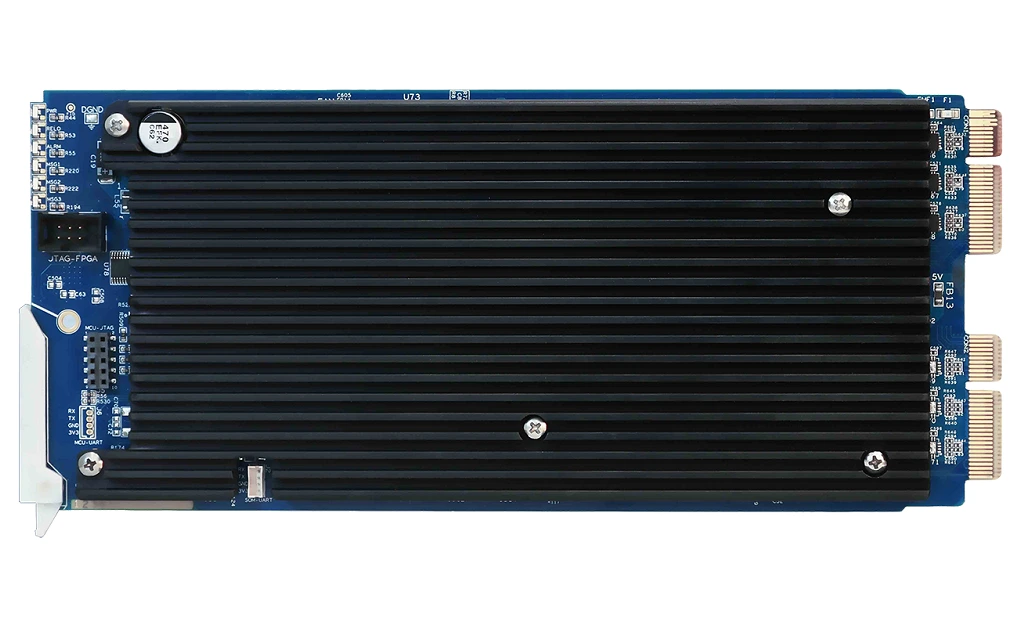

| FSY-3260 | Dual-Channel 3G/HD/SD-SDI Frame Synchronizer Main Board | Main Board |

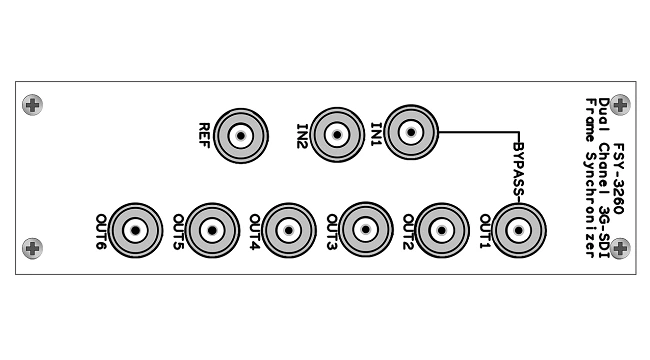

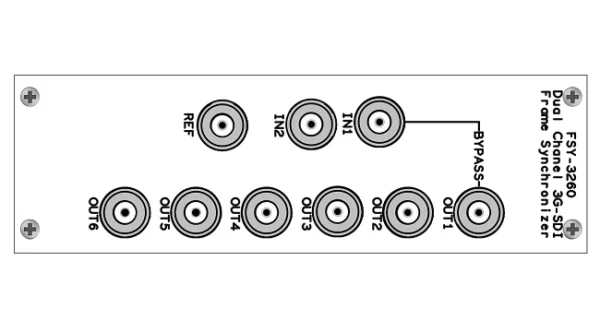

| FSY-3260-3DRP-R | Back-panel for FSY-3260 with relay protection (compati- ble with SRM-0655) | Back Panel |
