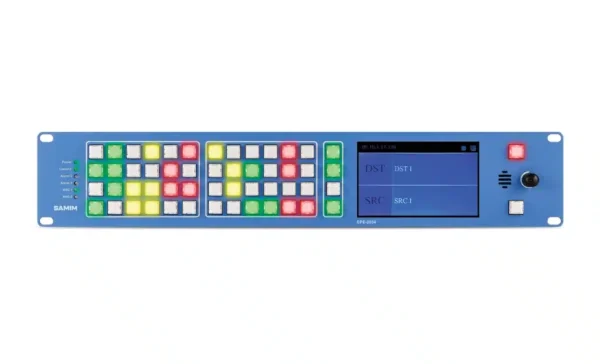

CPE-2054
Router Control Panel with Color LCD and 54 Buttons
SAMIM CPE-2054 is a configurable control panel for a variety of analog/digital audio and video routers. The control panel and a router are connected via a TCP/IP connection.
Overview
SAMIM CPE-2054 is a configurable control panel for a variety of analog/digital audio and video routers. The control panel and a router are connected via a TCP/IP connection. This control panel has 54 multi-color pushbuttons which can be used in Category and Button Per Source (BPS) modes. The built-in TFT display of the system can be used to show the input/output or to show the input video before switching. The panel can be controlled by its built-in web server. Users of the panel can simply define their desired functionalities. The control panel has a lot of configurable features such as the operation of keys and their colors in different modes, work mode (BPS or Category), and the name of the router’s input/output ports.
Features
• 2RU frame
• 3-color pushbuttons (green, yellow and red)
• Undo button
• Panel lock (to avoid accidental selection)
• Connect to routers via TCP/IP connection
• Easy installation and configuration
• Configurable BPS and category mode
• Configurable source and destination pushbuttons
• Web-based configuration
• SNMP support
• Audio/video decoding
• TFT display to show names of selected ports
• Rotary can be used in menus
• Redundant AC or DC power supply
Order Info
| Order Code | Description | Type |
|---|---|---|
| CPE-2054 | 2RU Router Control Panel with Display and 54 Buttons | Base |
Block Diagram
Specifications
Applications
Download
| Download Name | Download File |
|---|---|
| Download Datasheet | https://www.samimgroup.com/wp-content/uploads/2023/07/Samim-CPE-2054-datasheet-en.pdf |
