CHO-0801
1RU Multi-channel Automatic AES Change-over
Samim CHO-0801 is a digital audio changeover system with automatic/manual modes, supporting 2×1 to 4×1 switching. It ensures seamless V-fade transitions, signal monitoring, and relay-protected outputs. User-friendly control is available via front panel and web-based interface.
Overview
Samim CHO-0801 is a versatile digital audio changeover system, offering both automatic and manual modes and operating across four or eight channels. Its modular design allows for configurations in 2×1, 3×1, and 4×1 schemes. The analyzer core detects lock status, silence, overload, and phase alignment. To ensure smooth transitions without unwanted artifacts, switch operations are performed using a V-fade transition. In automatic mode, users can define priorities for each output.
Additionally, CHO-0801 features bypass relay protection over outputs, enhancing the reliability of the signal chain. The front-panel and web-based user interface allow for easy configuration and monitoring of the device.
Features

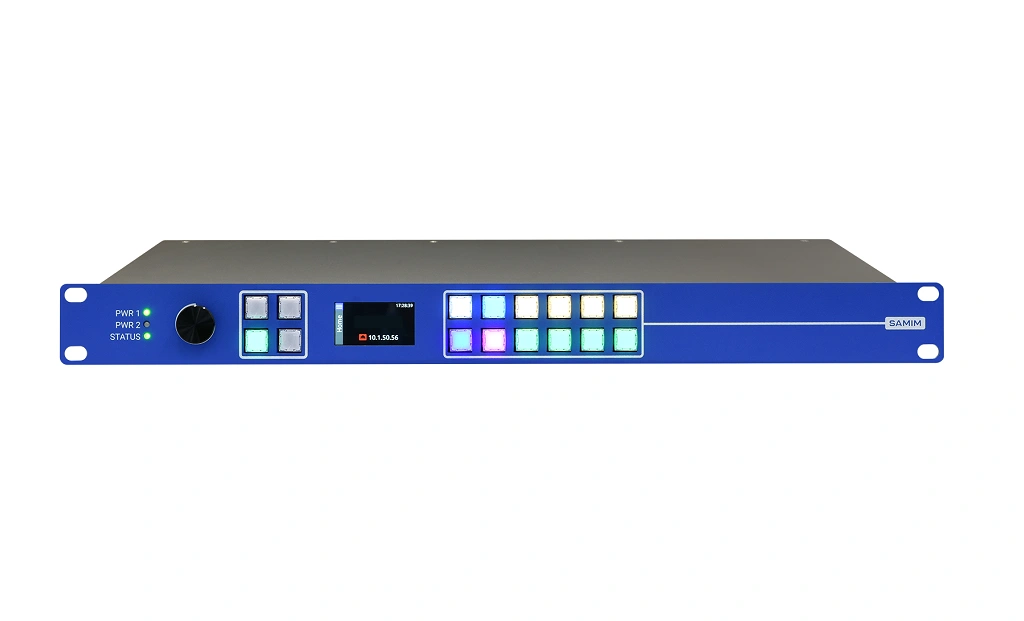

• 1RU rack-mount case with integrated front control panel (depth 370mm)

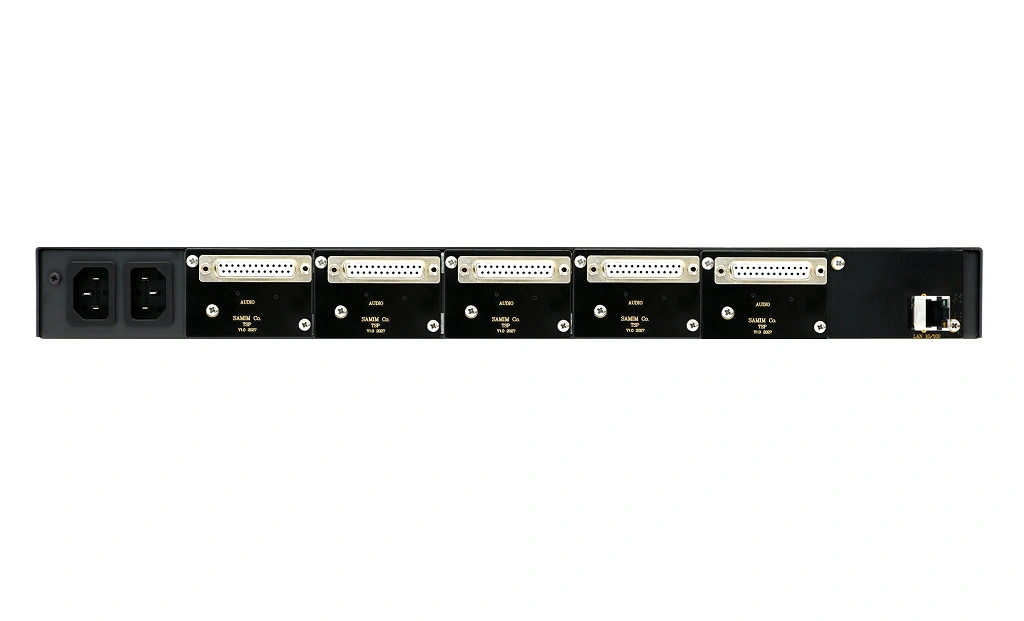

• Supports up to 32x AES (48kHz) inputs (D-SUB connectors)
• Independent control for 8x AES outputs
• V-fade transition (quiet switch)
• Relay protection for AES outputs
• No quality impacts
• Web-based user interface
• Redundant power supplies

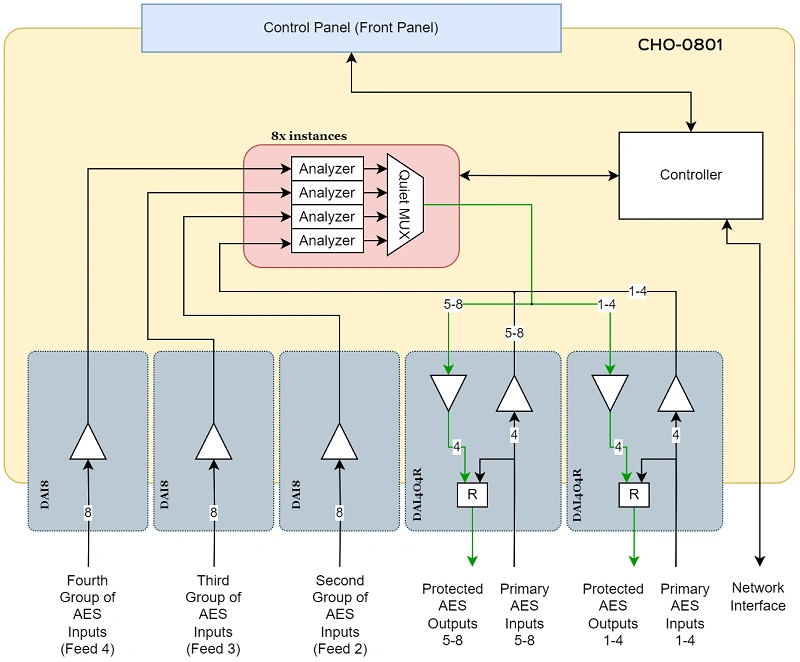

Block Diagram
Order Info
| Order Code | Description | Type |
|---|---|---|
| CHO-0801-C1 | 1RU Multi-channel Automatic AES Change-over with Front Control Panel and Redundant Power Supplies | Base |
| MOD-TSP-DAI4O4R | 4-CH Digital Stereo Audio Input + 4-CH Digital Stereo Audio Output Module with Relay | I/O Module, Up to 2 |
| MOD-TSP-DAI8 | 8-Channel Digital Stereo Audio Input Module | I/O Module, Up to 3x |
Download
| Download Name | Download File |
|---|---|
| Samim-CHO-0801-datasheet | https://www.samimgroup.com/wp-content/uploads/2025/02/Samim-CHO-0801-datasheet.pdf |
