    Role of MPEG Transport Stream in Modern Broadcasting

    The MPEG Transport Stream (MPEG-TS) is a technology in modern broadcasting that facilitates the efficient transmission of audio, video, and data across diverse platforms. As a standardized format, MPEG TS ensures interoperability among various broadcast systems, supporting multiple codecs and enabling simultaneous delivery of multimedia content, including multiple audio tracks and subtitles.

    Its packetization approach enhances streaming efficiency and error resilience, making it ideal for live broadcasts. Furthermore, MPEG-TS plays a critical role in the integration of new broadcasting technologies, particularly in IP-based networks and Digital Video Broadcasting (DVB) standards.

    This article explores the significance of the MPEG Transport Stream in audio-video broadcasting and its adaptability to emerging media trends.

    What is MPEG TS (MPEG Transport Stream)?

    MPEG-TS is a digital container format that facilitates the transmission and storage of audiovisual and data content. It is a standardized format, specified in the MPEG-2 standard (ISO/IEC 13818-1), and is widely adopted in various broadcasting systems.
    One of the key features of MPEG TS is its packet-based structure, which divides data into small packets, typically 188 bytes each. This allows for efficient streaming and the handling of errors during transmission.

    Furthermore, MPEG Transport Stream is capable of multiplexing, which enables the efficient combination of multiple audios, videos, and subtitle streams, making it suitable for broadcasting applications that require synchronized delivery of diverse media content. The format also includes mechanisms for error detection and correction, which are crucial for maintaining data integrity during live broadcasts.

    Foundation of MPEG Transport Stream: Origins and Development

    MPEG Formation

    The Moving Picture Experts Group (MPEG) was established in 1988 by the International Organization for Standardization (ISO) to develop standards for audio and video compression. The initial focus was on creating standards that could facilitate digital video transmission and storage.

    Initial Standards of MPEG

    The early MPEG standards, such as MPEG-1 and MPEG-2, focused primarily on video compression and coding. MPEG-1 was aimed at CD-ROM audio and video, while MPEG-2 enhanced video quality and introduced support for various broadcast applications.

    Development of MPEG-TS

    In 1990s, there was a growing requirement for a robust transport mechanism that could handle the transmission of compressed audio and video data along with metadata. This need led to the development of the MPEG Transport Stream.
    MPEG-2 introduced the MPEG TS format in 1996 as part of its specification.

    The MPEG Transport Stream was designed to facilitate the synchronization of various audio and video streams and support error correction, making it suitable for broadcasting applications and digital storage media.


    MPEG-TS gained popularity for its use in broadcast systems such as satellite, cable, and terrestrial broadcasts, as well as for streaming applications over networks. It has been widely implemented in technologies like DVB ( Digital Video Broadcasting ) and ATSC (Advanced Television Systems Committee).


    Subsequent standards, including MPEG-4, maintained compatibility with MPEG Transport Stream while adding features for advanced video coding and streaming. The format has also adapted to newer technologies, including IP-based streams for internet broadcasting.

    Key Components of MPEG Transport Stream

    Key Components of MPEG Transport Stream

    The MPEG Transport Stream is structured to efficiently handle the transmission of audio, video, and other data. Here are its key components:

    Packet Structure
    Fixed Size: Each MPEG-TS packet has a fixed size of 188 bytes.
    Header: The first 4 bytes of each packet serve as the header, which contains essential information for stream synchronization and parsing.

    Adaptation Fields
    • Used to carry additional information about the packet, such as timing and synchronization data.
    • It Can include flags for payload type, discontinuity information, and other settings.


    Payload
    • The main part of the packet carries the actual data, such as compressed audio and video streams or other related data (like subtitles).
    • The payload can vary in size and type depending on the contents.


    Program Specific Information (PSI)
    • Provides metadata about the streams in the transport stream, enabling the receiver to correctly interpret and synchronize the data.
    • Important PSI tables include:
    Program Association Table (PAT): Lists all programs in a transport stream and the PID (Packet Identifier) for the corresponding Program Map Table.
    Program Map Table (PMT): Contains information about the specific streams (video, audio, subtitles) associated with a program, including their PIDs and characteristics.


    Synchronization
    • MPEG-TS supports the synchronization of multiple streams, allowing audio and video to remain in sync even when transmitted over different channels or paths.

    • This is facilitated by Timestamp fields used within the packets.


    Error Resilience
    • MPEG Transport Stream includes error correction features, allowing it to handle data loss and maintain uninterrupted streaming, which is essential in broadcast scenarios.

    • Redundant data and Forward Error Correction (FEC) can improve robustness.

    Multiplexing Support
    • The transport stream can multiplex various types of content, such as multiple audio tracks, video streams, and subtitles, into a single transmission, making it versatile for broadcasting applications.

    Payload Unit Start Indicator (PUSI)
    This flag indicates the start of a new payload unit, which helps identify the beginning of a new data stream segment, particularly in the case of split payloads.

    These components work together to ensure that MPEG-TS provides reliable, flexible, and efficient multimedia content delivery over various transmission channels.

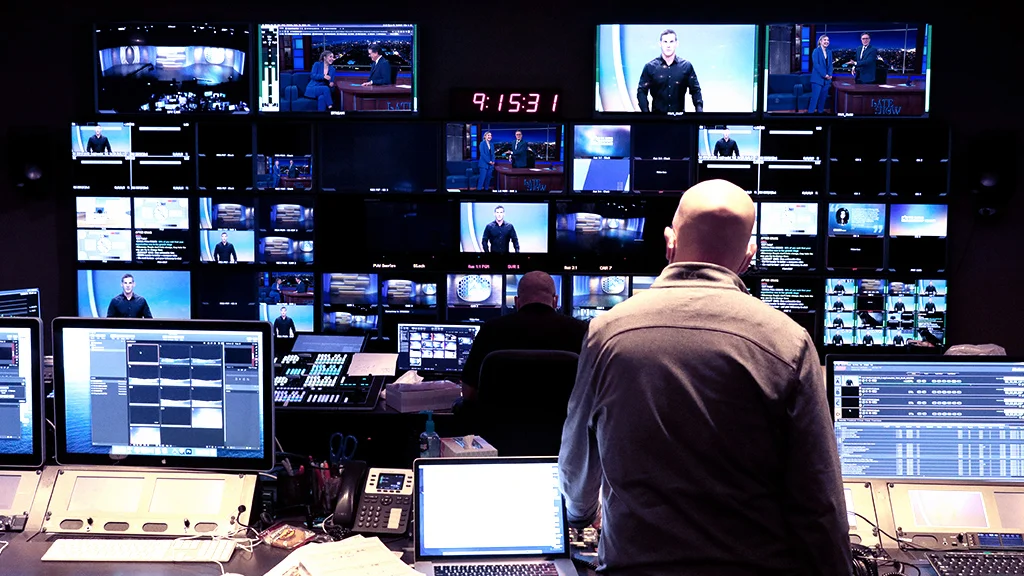

    Role of MPEG-TS in Modern Broadcasting Workflows

    The MPEG Transport Stream plays a crucial role in modern broadcasting workflows by enabling efficient transmission and integration of audio, video, and data. Here are the key aspects of its role:

    Efficient Signal Transmission and Streaming

    MPEG-TS facilitates the multiplexing of various streams—video, audio, subtitles, and metadata into a single transport stream, which is essential for broadcasters delivering multiple content types simultaneously. The fixed packet size of 188 bytes allows for consistent streaming and synchronization across channels.

    Broadcasting Standards Compliance

    Widely adopted in broadcasting standards like DVB (Digital Video Broadcasting) and ATSC (Advanced Television Systems Committee), MPEG-TS ensures compatibility with a broad range of devices and platforms. It supports various compression formats, including MPEG-2, H.264, and H.265, making it adaptable for different broadcasting needs.

    Error Resilience and Recovery

    Designed to handle transmission errors, MPEG-TS includes mechanisms for error detection and correction. These mechanisms are vital in terrestrial and satellite broadcasting environments where signal degradation can occur. This capability allows for seamless playback, even when data packets are lost or corrupted.

    Interoperability with IP Networks

    MPEG-TS is crucial in hybrid workflows that merge traditional broadcasting with Internet Protocol (IP) delivery. This integration allows content streaming over the internet while maintaining compatibility with traditional broadcast systems. Additionally, it supports adaptive bitrate streaming, enabling content quality to adjust based on user network conditions.

    Dynamic Content Delivery

    Broadcasters leverage MPEG Transport Stream for live events, ensuring real-time content delivery with minimal latency. The format is compatible with various platforms for live streaming and on-demand services. It can also embed metadata for content protection, supporting features like conditional access and digital rights management (DRM) to secure premium content distribution.

    integration with Advanced Features

    MPEG-TS supports interactive television services, enabling features like electronic program guides, voting, and audience engagement, which enhance viewer experience. The format accommodates metadata embedding, providing additional context about broadcast content, including captions and subtitles.

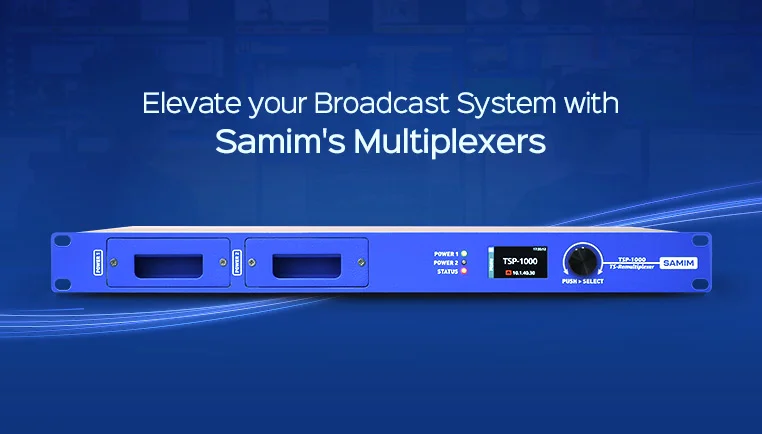

    Samim TS Multiplexer

    Upgrade your Broadcast System with Samim’s TS Multiplexers

    Upgrading your broadcast system with Samim’s TS Multiplexer can significantly enhance your broadcasting capabilities and streamline your workflows. Here are some of the key features and benefits you can expect from using this advanced multiplexing solution:

    High-Performance Multiplexing
    • Efficient Stream Management: Samim’s TS Multiplexer allows for seamless integration of multiple audios, videos, and data streams into a single transport stream, ensuring efficient bandwidth utilization.
    • Real-Time Processing: The multiplexer processes streams in real time, which is crucial for live broadcasting scenarios, ensuring minimal latency and high-quality output.

    Flexible Input and Output Options
    • Multiple Formats Supported: It accommodates a variety of input formats (e.g., MPEG-2, H.264, H.265), making it versatile for different broadcasting needs.
    • Diverse Output Options: The system can generate output streams in various formats, enabling compatibility with numerous broadcast systems and platforms.

    Error Resilience and Quality Assurance
    • Robust Error Handling: Samim’s TS Multiplexer includes advanced error detection and correction mechanisms to maintain stream integrity, even in challenging transmission environments.
    • Quality Monitoring: Integrated monitoring tools allow broadcasters to check the quality of all streams in real time, providing alerts for any discrepancies.

    User-Friendly Interface
    • Intuitive Design: With a user-friendly interface, the multiplexer simplifies the setup and management of transport streams, making it accessible for operators of all skill levels.
    • Simplified Configuration: The configuration process is streamlined, reducing setup time and ensuring quick deployment for urgent broadcasting needs.

    Support for Advanced Features
    • Conditional Access and DRM: The multiplexer supports conditional access and digital rights management, ensuring secure content delivery to your audience and protecting intellectual property.
    • Interactivity and Customization: It enables the incorporation of interactive services, such as electronic program guides and viewer engagement tools, enhancing viewer experience.

    Upgrading your signal contribution and transmission procedures with Samim’s TS Multiplexer can vastly improve the efficiency and quality of your media delivery. By leveraging its high-performance multiplexing capabilities, flexible input/output options, and robust error resilience, you can ensure a superior broadcasting experience.
